| MKC Tools Tachulator Mounting Examples |

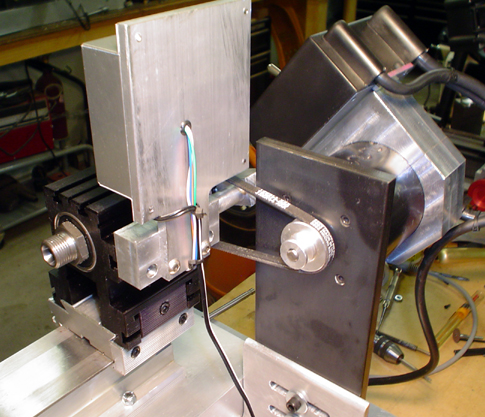

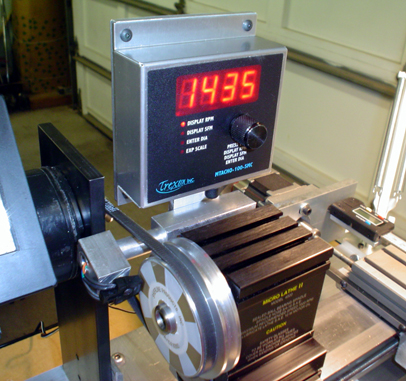

Trexon factory Aluminum enclosure model shown mounted on
Taig lathe.
|

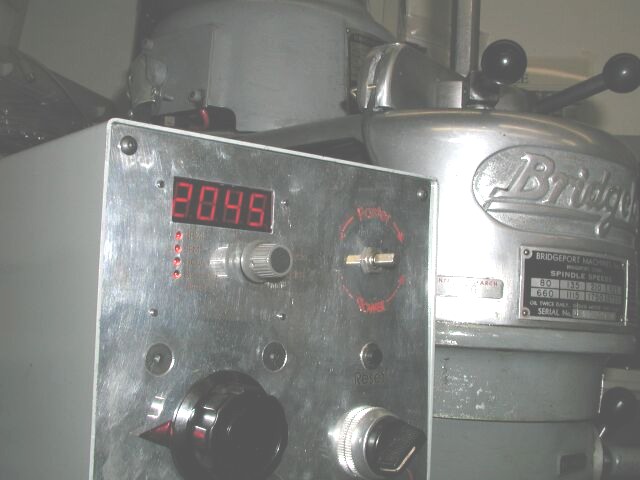

Tachulator board mounted in Bridgeport control box.

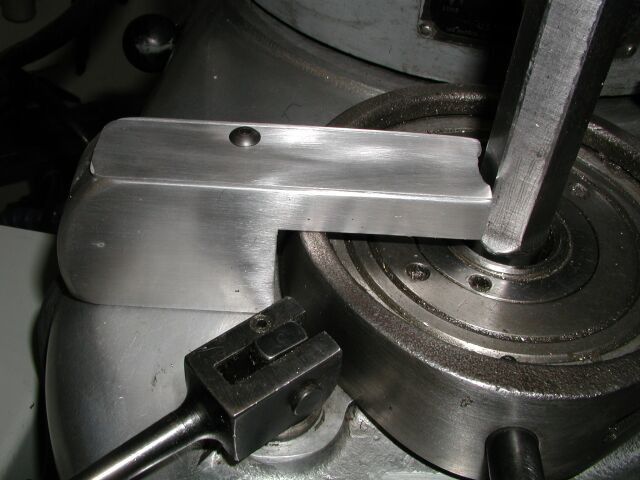

Sensor in custom made aluminum housing reads flats on polished hex drawbar.
|

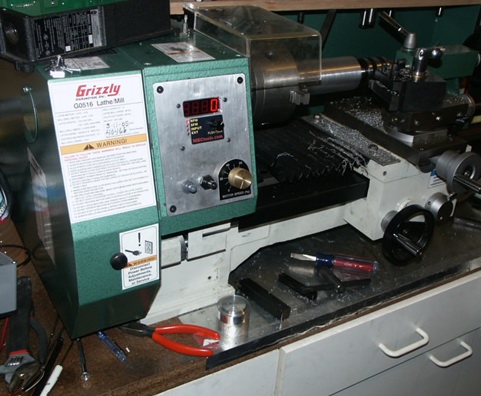

Here is a link to Shawn Fitzpatrick's tach installation on his Grizzly lathe.Grizzly G0516 external ------ Grizzly G0516 in panel |

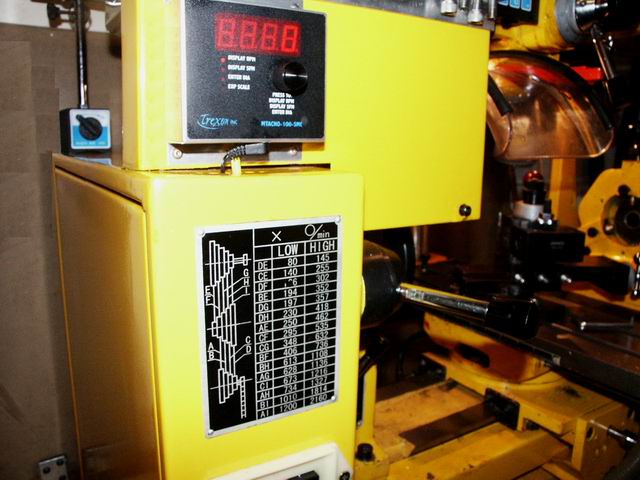

ShopTask Bridgemill -- Details |

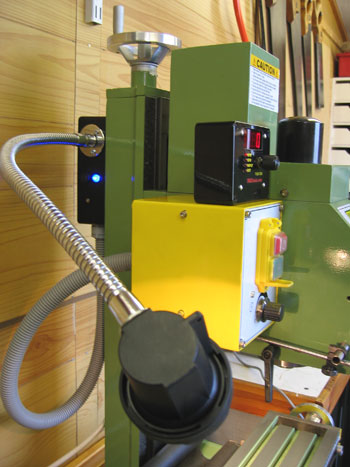

Warco WM-14 install details
|

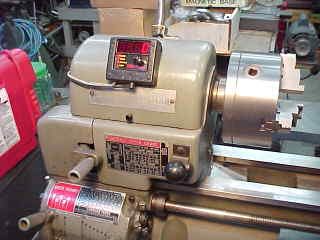

Atlas 12x36 lathe -- Details |

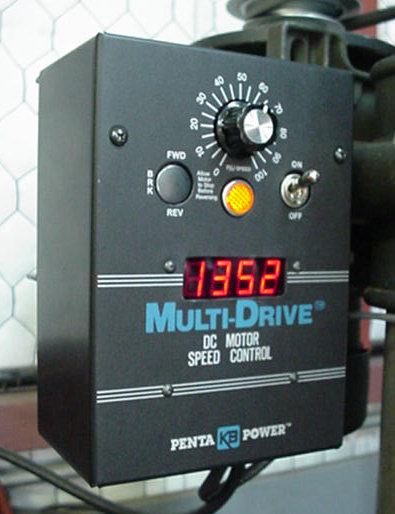

Tach only module mounted in KB DC motor control.
controller box. -- Details |

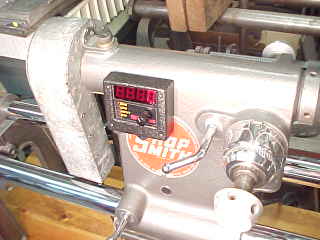

Shopsmith
Mark V -- Details |

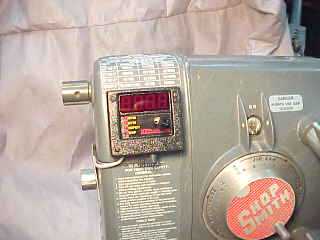

Shopsmith
10ER -- Details |
|
|
